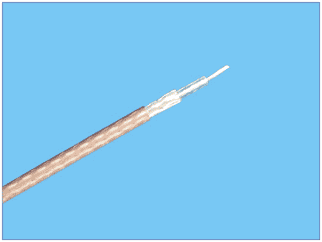

SFF Ptfe Insulation Soft Coaxial Radio-frequency Cable

Product introduction

1.Rated specification:200℃,300V;

2.Inner conductor is single or multiple twisted wire made of silver-plating copper or steel covered by silver-plating copper;

3.Outer conductor is single or double twisted wire made of silver-plating copper;

4.Insulator is made of PTFE and sleeve is made of FEP.Optional colors are transparent,blue,light brown and etc;

5.The wire is light with less loss of high frequency.It is soft,heatprooff,humidity resistant,corrosion resistant and flaming proof;

6.It applies to wireless communication,broadcast,navigation,electrical antagonism and electrical equipments for military purpose.
