3239 High Voltage and High Temperature Resistant Fluoroplastic insulation Wire

Your present position:Home » Product

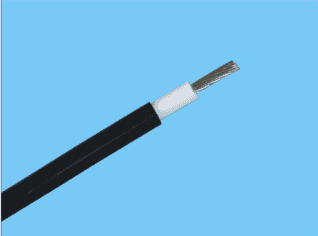

3239 High Voltage and High Temperature Resistant Fluoroplastic insulation Wire

Product introduction

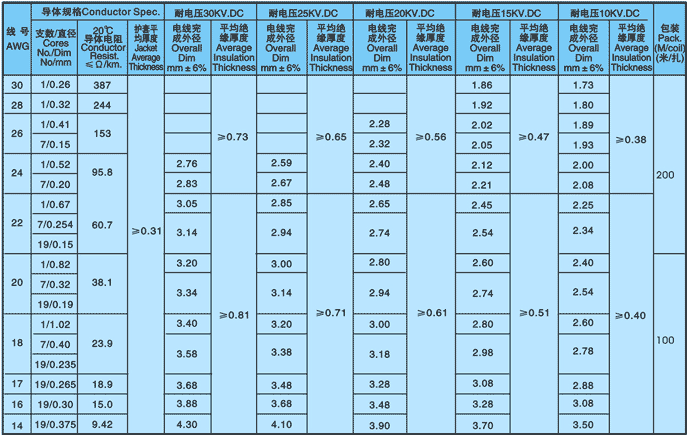

1.Rated specification:200℃,30KVDC,25KVDC,20KVDC,10KVDC;

2.Conductor is single or multiple twisted wire made of tinplating copper or bare copper;

3.Insulator is made of FEP or PTFE plastic,Color:semitransparent or white,sheathing is made of FEP, and optional colors are red,blue,yellow,green,black,orange as well as transparent;

4.Appliance is of good performance against high voltage,loss in high frequency and humidity,and it provides high resistance of insulation;

5.Good heatproof,flaming resistant,aging resistant,oil preventing,solvent preventing,acid and alkali resistant performance;

6.It applies to internal high-voltage wire distribution in lamps,electronics and appliances.
